Charles Holloway's Rotocon Lab Frames And Supports
Lab Frames of Distinction
("Lab Frames of Distinction" because Rotocon Lab Frames are easily recognized and that recognition is coincidental with exceptional quality.)
NOT ENOUGH ROOM ON YOUR LAB WORK BENCHES OR IN YOUR HOODS?  Going "Vertical" with lab frames may free up some space for your other important work. Custom-build your LAB FRAME, CHROMATOGRAPHY and DISTILLATION STANDS or choose one of our designed kits here.

COMPARE PRICES. WHY PAY MORE FOR LAB FRAMES?

ON-LINE SHOPPING

Note:  Additional shipping charges for lab frame orders outside the original 48 United States will be invoiced to your PayPal account in an email to you, after the order has been placed and we have packed, weighed and determined the correct cost for shipment. All lab frame kit orders within the original 48 U.S. ship by ground transport at no additional charge since the shipping is included in the price of the kit.


LAB FRAME RODS, CONNECTORS AND ANCHORS
            Rods are available in fiberglass, aluminum, solid stainless steel
              and tubular stainless steel. Connectors and anchors (feet) available in                            die-cast zinc alloy and die-cast aluminum alloy.





LAB FRAME KITS WITH BASE SUPPORT ROD DESIGN
               Configured with all combinations of above rods, connectors and anchors
               using the "Base Support Rod Design".





LAB FRAME KITS WITHOUT BASE SUPPORT ROD DESIGN
               Configured with all combinations of rods, connectors and anchors using the
               "Platform Support Design" which allows similar strength with less hardware
                and more economy.






WALL-MOUNTED LAB FRAME KITS
               Featuring a wide variety of lab frames that can be mounted to walls instead
               of horizontal platforms.
Shop For Above
Model BTZ33 Lab Frame
3 ft w by 1.5 ft d by 3 ft h
Base support rod design, tubular stainless steel rods, zinc alloy connectors and zinc alloy anchors.
Model BTH33 Heavy Duty Lab Frame
3 ft w by 1.5 ft d by 3 ft h
Base support rod design, tubular stain-less steel rods, zinc alloy and alum- inum alloy connectors and aluminum alloy anchors.
EXAMPLES: Click to enlarge. (TO ORDER OR INVESTIGATE, NAVIGATE TO APPROPRIATE PAGE)
Model NTZ33 Lab Frame
3 ft w by 1.5 ft d by 3 ft h
Platform support design (no base support rods), tubular stainless steel rods, zinc alloy connectors and zinc alloy anchors.
Model NTH34 Heavy Duty Lab Frame
3 ft w by 2 ft d by 4 ft h
Platform support design, tubular stain- less steel rods, zinc alloy and alum- inum alloy connectors and aluminum alloy anchors.
Model WTZ33 Wall-Mounted Lab Frame.
 3 ft w by 1 ft d by 3 ft h
Wall mount design, tubular stainless steel rods, zinc alloy connectors and zinc alloy anchors.
Model WRZ Wall-Mounted Lab Frame.
 5 ft w by 1 ft d by 4 ft h
Wall mount design, solid stain-less steel rods, zinc alloy con-nectors and zinc alloy anchors.
Model WTH33 Wall-Mounted Lab Frame. 3 ft wide by 1 ft d by 3 ft h
Wall mount design, tubular stain-less steel rods, zinc and aluminum alloy connectors and aluminum alloy anchors.
Click to enlarge
Site Navigation
Lab Frames with base support rods:
Lab Frames without base support rods:
Wall-Mounted Lab Frames:
Before navigating to another page please read the note under On-Line Shopping below.
See "Contact Us" for explanation of shipping options and charges.
SUPPORT TRIANGLES FOR LAB FRAMES

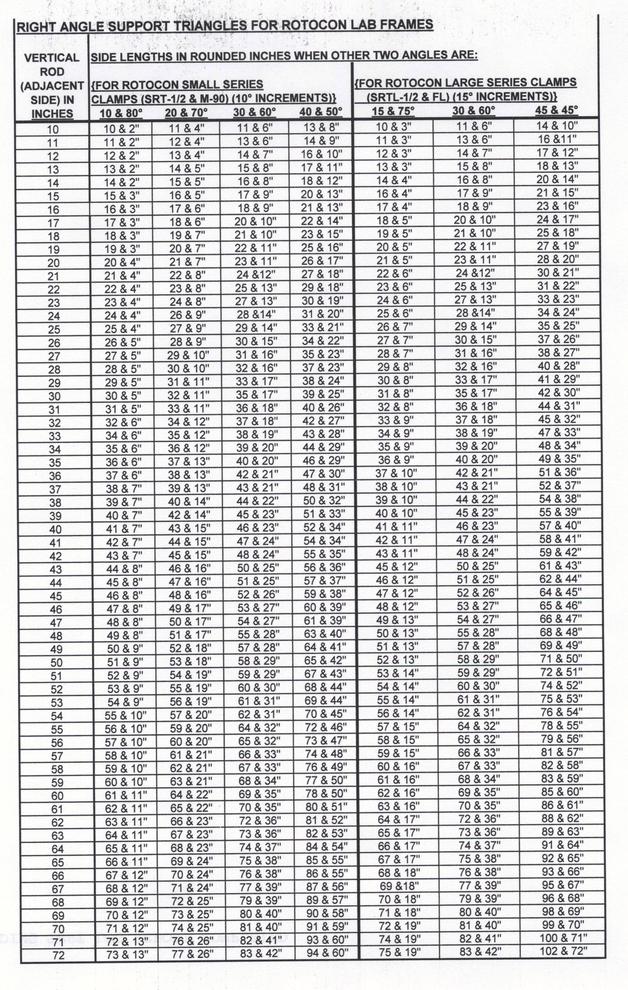

In construction of the non-wall-mounted lab frames you should make a support triangle on each side. Our assembly instructions will guide you through these steps but is included here for general information. Since Rotocon clamps are set for either 10 or 15 degree increments of rotation, according to the size of the clamps, the chart below will help you find a compatible fit for the triangle without using the trial and error method.
1) Determine where you want the apex of the triangle on the vertical rod.
2) Measure in inches from that point down the vertical rod to the lower clamp that connects the horizontal side of the triangle.
3) Look up your measurement number in the first column of the chart labeled "Vertical Rod". The row beside each number gives the possible angles and lengths of the long diagonal side and the lower horizontal side of the right angle triangle.
4) Measure each to ensure that the rods that came with your kit are not too long or too short.
5) Mark the vertical and horizontal rods at the points of attachment and then attach the long diagonal rod so that the "teeth" of the clamps mesh properly.

IMPORTANT CONSTRUCTION AND ASSEMBLY INFORMATION AT THE BOTTOM OF THIS PAGE!
